SATEC’s BFM-II is the second generation of Branch Feeder Monitor™, providing energy management for multi-point power solutions. Ideal for both new and retrofit projects, the BFM-II monitors up to 18 three-phase circuits, 54 single- phase circuits, or any combination of single or three-phase circuits, perfect fit for multi- tenant facilities such as residential projects, office buildings and shopping malls.

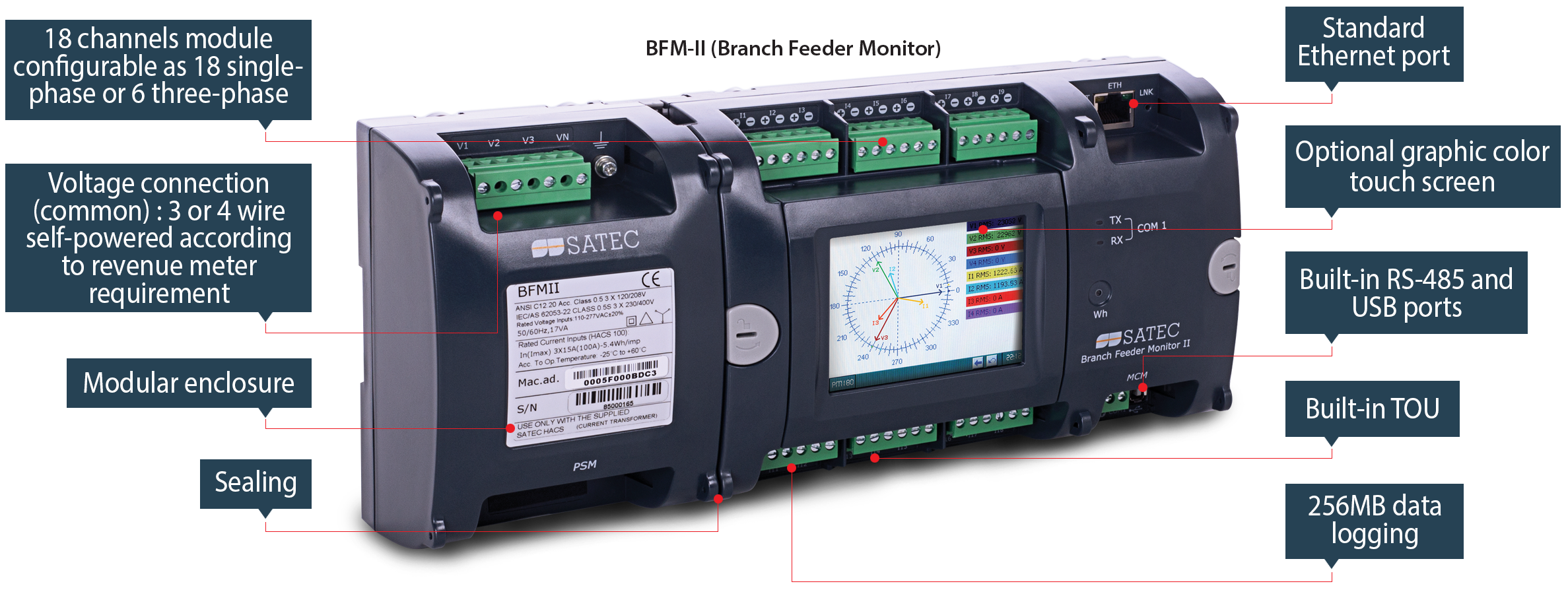

HIGHLIGHTS & FEATURES OF BFM-II

• Automatic totalization energy from different consumers
• Modular design allows selection of 18, 24, 30, 36, 42 or 54 submeters
• Supports high accuracy current transformers with Class 0.5S accuracy
• 3-phase/2-phase/single-phase meters (true RMS, volts, amps, power, power factor, neutral current)
• TOU
• Automatic 120-day daily profile for energy & maximum demand readings (total and tariff registers) for each submeter
• Ampere/Volt demand meter
• Power quality monitoring including voltage and current harmonics (up to the 25th)
• Event recorder for logging internal diagnostic events and setpoint operations
• Data recorders : programmable periodical data logs for each submeter
• Standard RS-485, Ethernet & USB ports
• Optional cellular communication port plug-in module
• Optional 9/18 digital inputs or 4 analog inputs module
• Modbus RTU, Modbus TCP, DNP3.0 and DNP/TCP communication protocols
